Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4836

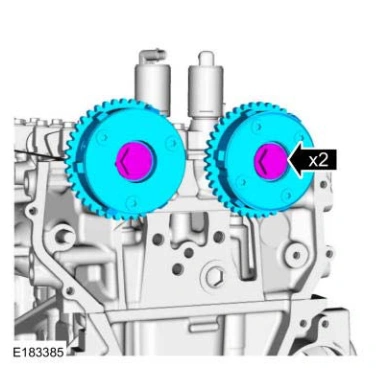

Engine — original illustration 1, reference 4836Original colors & callouts · Select to enlarge

NOTE: Washers are not required for installation of the VCT units.

92. If equipped, discard the washers.

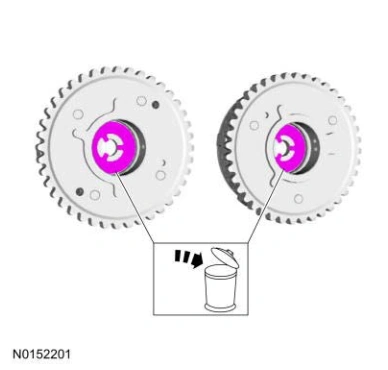

Engine — original illustration 2, reference 4836Original colors & callouts · Select to enlarge

93. Remove Special Service Tool: 303-1565 Alignment Tool, Camshaft.
