Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,839HTML edition
← Chapter contentsManual collection

NOTE: If the camshafts and valve tappets are to be reused, mark the location of the valve tappets to make sure they are assembled in their original positions.

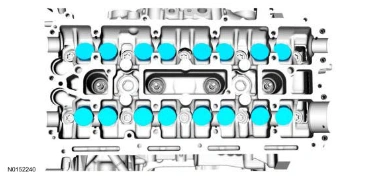

98. Remove the valve tappets.

Engine — original illustration 1, reference 4839Original colors & callouts · Select to enlarge

NOTE: The number on the valve tappets only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 mm.

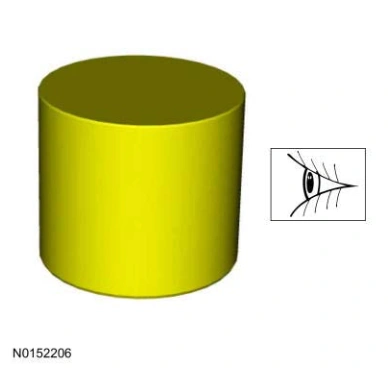

99. Inspect the valve tappets.

Engine — original illustration 2, reference 4839Original colors & callouts · Select to enlarge

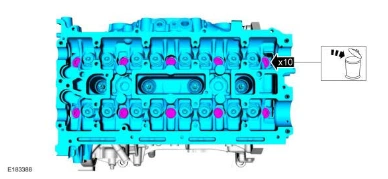

100. Remove the bolts and the cylinder head.

Discard the bolts.

Engine — original illustration 3, reference 4839Original colors & callouts · Select to enlarge
