Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,840HTML edition
← Chapter contentsManual collection

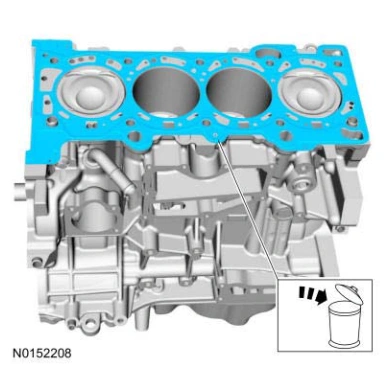

101. Remove and discard the cylinder head gasket.

Engine — original illustration 1, reference 4840Original colors & callouts · Select to enlarge

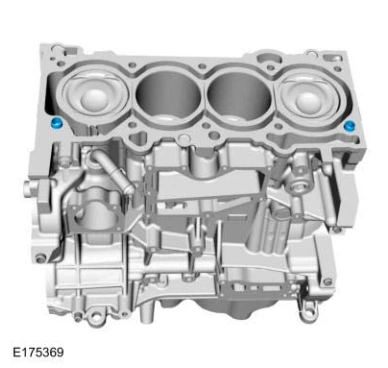

102. Remove the cylinder block bushings.

Engine — original illustration 2, reference 4840Original colors & callouts · Select to enlarge

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

NOTE: Clean the cylinder head bolt holes in the cylinder block. Make sure all coolant, oil or other foreign material is removed.

103. Make sure that the mating faces are clean and free of foreign material.
