Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4843

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

Engine — original illustration 1, reference 4843Original colors & callouts · Select to enlarge

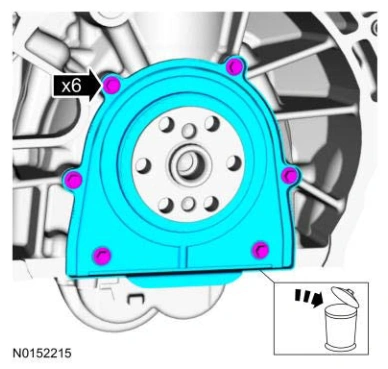

109. Remove the bolts and the crankshaft rear seal. Discard the crankshaft rear seal.

Engine — original illustration 2, reference 4843Original colors & callouts · Select to enlarge

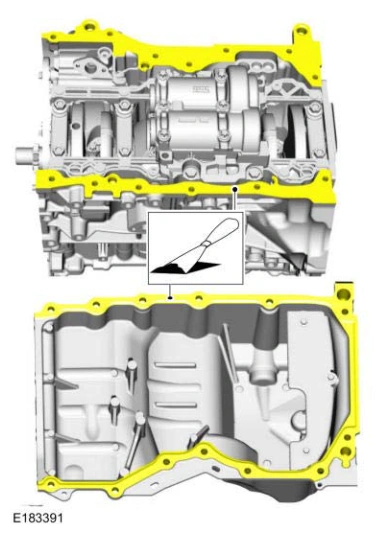

NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

110. Make sure that the mating faces are clean and free of foreign material.
