Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,844HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4844Original colors & callouts · Select to enlarge

111.

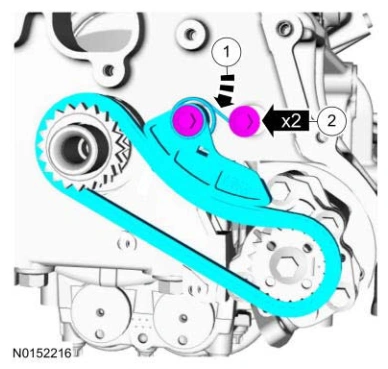

1. Release the tension on the tensioner spring.

2. Remove the shoulder bolts, tensioner and timing chain.

Engine — original illustration 2, reference 4844Original colors & callouts · Select to enlarge

112. Remove the crankshaft sprocket.
