Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,846HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4846Original colors & callouts · Select to enlarge

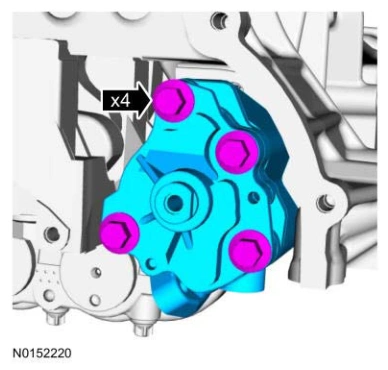

115. Remove the bolts and the oil pump.

Engine — original illustration 2, reference 4846Original colors & callouts · Select to enlarge

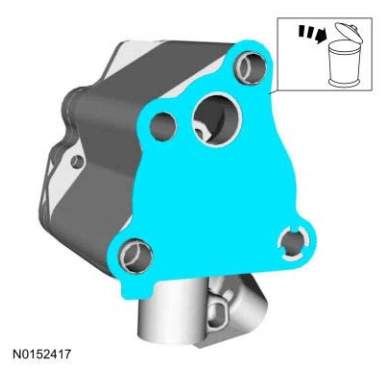

116. Remove and discard the oil pump gasket.

Engine — original illustration 3, reference 4846Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4846
