Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,849HTML edition
← Chapter contentsManual collection

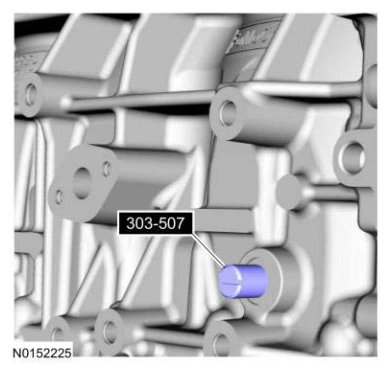

Engine — original illustration 1, reference 4849Original colors & callouts · Select to enlarge

122.

1. Inspect ridge.

NOTE: Remove the carbon buildup, do not scratch the cylinder wall. Remove all debris from the cylinder.

2. Clean with abrasive pad.

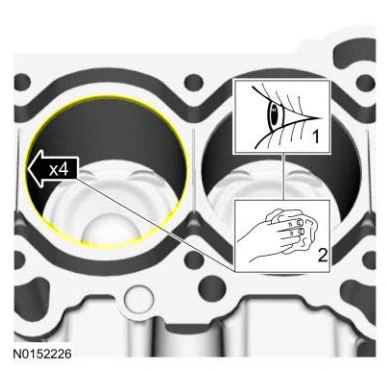

Engine — original illustration 2, reference 4849Original colors & callouts · Select to enlarge

NOTE: Clearly mark the connecting rods, connecting rod caps and connecting rod bearings in numerical order for correct orientation for reassembly.

123. Remove the bolts and the connecting rod caps.

Ford_Mustang_all_2015-2017.pdf · source reference 4849
