Cylinder Head

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,852HTML edition
← Chapter contentsManual collection

orientation and reassembly.

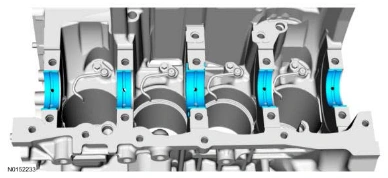

129. Remove the crankshaft main bearings.

Cylinder Head — original illustration 1, reference 4852Original colors & callouts · Select to enlarge

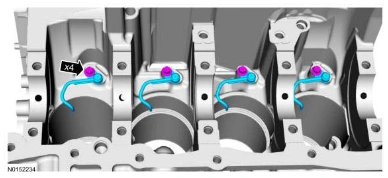

130. Remove the bolts and the engine piston oil cooler valves.

Cylinder Head — original illustration 2, reference 4852Original colors & callouts · Select to enlarge

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES > CYLINDER HEAD

Special Tool(s) / General Equipment

Cylinder Head — original illustration 3, reference 4852Original colors & callouts · Select to enlarge

303-1249 Valve Spring Compressor

TKIT-2006UF-FLM

TKIT-2006UF-ROW

Cylinder Head — original illustration 4, reference 4852Original colors & callouts · Select to enlarge

303-1567 Sizer, Teflon Seal

TKIT-2010C-FLM

Cylinder Head — original illustration 5, reference 4852Original colors & callouts · Select to enlarge

303-300 (T87C-6565-A) Set, Valve Spring Compressor T88C-1000-ST

TKIT-1988-FESTIVA

TKIT-1988-TRACER

TKIT-2009TC-F

Ford_Mustang_all_2015-2017.pdf · source reference 4852
