Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,851HTML edition
← Chapter contentsManual collection

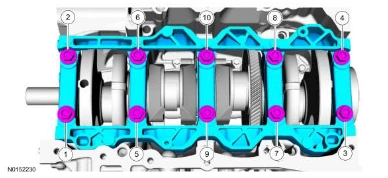

126. Remove the bolts and the main bearing beam.

Engine — original illustration 1, reference 4851Original colors & callouts · Select to enlarge

NOTE: If the main bearings are being reused, mark them in order for correct orientation and reassembly.

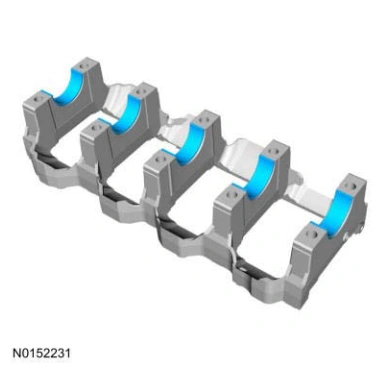

127. Remove the main bearing beam bearings.

Engine — original illustration 2, reference 4851Original colors & callouts · Select to enlarge

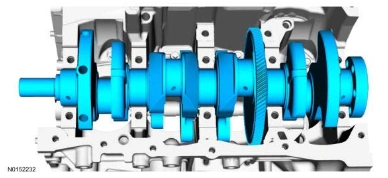

128. Remove the crankshaft.

Engine — original illustration 3, reference 4851Original colors & callouts · Select to enlarge

NOTE: The center bulkhead has the thrust bearing.

NOTE: If the main bearings are being reused, mark them in order for correct
