Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,848HTML edition
← Chapter contentsManual collection

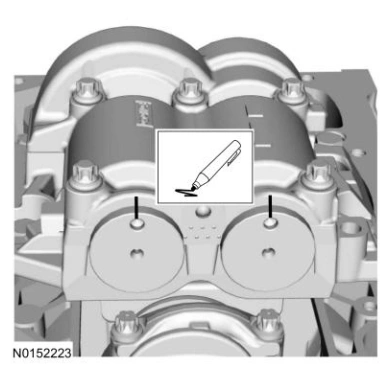

119. Index-mark the balance shaft assembly.

Engine — original illustration 1, reference 4848Original colors & callouts · Select to enlarge

NOTE: Due to the precision interior construction of the balance shaft assembly, it should not be disassembled.

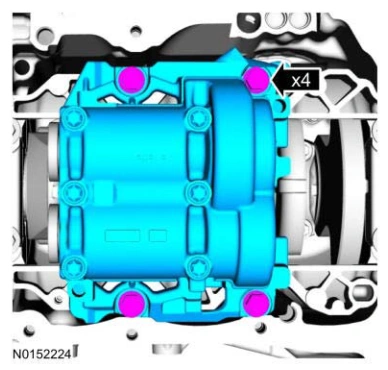

120. Remove the bolts and the balance shaft assembly.

Engine — original illustration 2, reference 4848Original colors & callouts · Select to enlarge

121. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
