Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,845HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4845Original colors & callouts · Select to enlarge

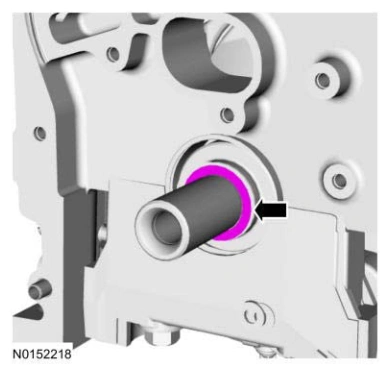

NOTE: The diamond washer should be cleaned and inspected for any damage. If damage is evident, replace the diamond washer. If no damage, the diamond washer is to be reused during installation. If the diamond washer is not installed, engine damage may occur.

113. Remove the diamond washer.

Engine — original illustration 2, reference 4845Original colors & callouts · Select to enlarge

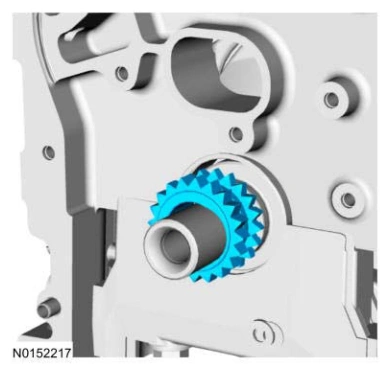

114. Remove the bolt and oil pump sprocket.
