Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,847HTML edition
← Chapter contentsManual collection

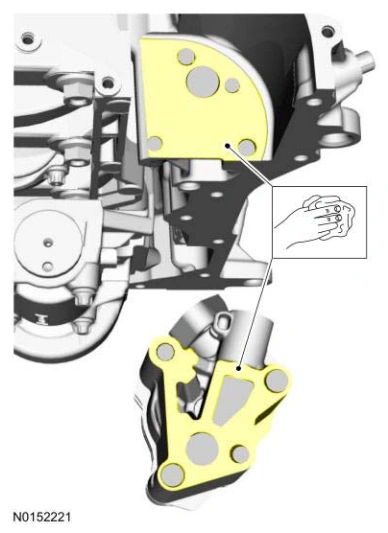

117. Make sure that the mating faces are clean and free of foreign material.

Engine — original illustration 1, reference 4847Original colors & callouts · Select to enlarge

NOTE: Make sure the Crankshaft TDC Timing Peg is still installed and the engine is still at TDC.

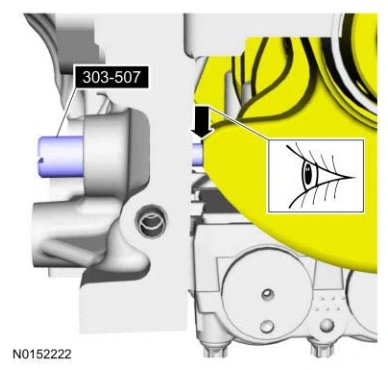

118. Rotate the crankshaft until it contacts the special tool.

Engine — original illustration 2, reference 4847Original colors & callouts · Select to enlarge

NOTE: Mark the balance shaft assembly front shafts on the top for reference that the balance shaft assembly is at TDC.
