Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,850HTML edition
← Chapter contentsManual collection

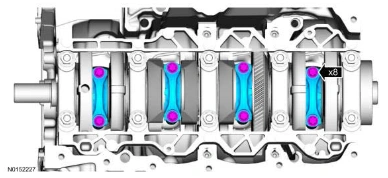

Engine — original illustration 1, reference 4850Original colors & callouts · Select to enlarge

NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod.

124. Remove the pistons.

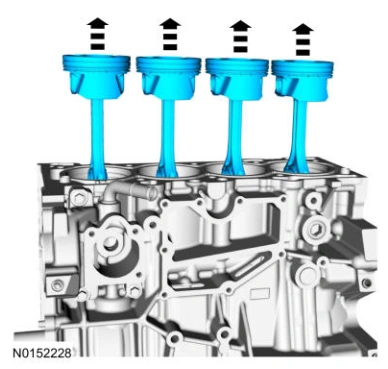

Engine — original illustration 2, reference 4850Original colors & callouts · Select to enlarge

NOTE: Mark the position of the parts, so they can be installed in their original positions.

125. Remove the connecting rod bearings. Refer to: Piston Inspection .

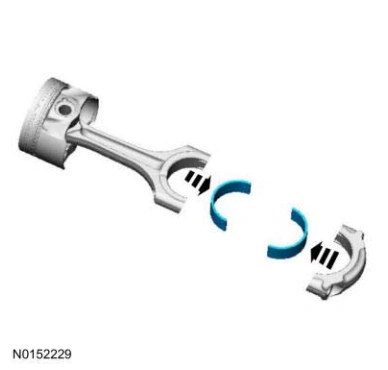

Engine — original illustration 3, reference 4850Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4850

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
