Disassembly

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,855HTML edition
← Chapter contentsManual collection

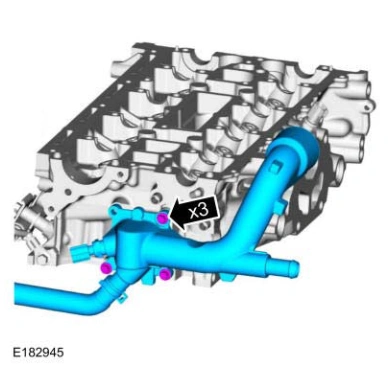

Disassembly — original illustration 1, reference 4855Original colors & callouts · Select to enlarge

2. Remove and discard the coolant outlet gasket.

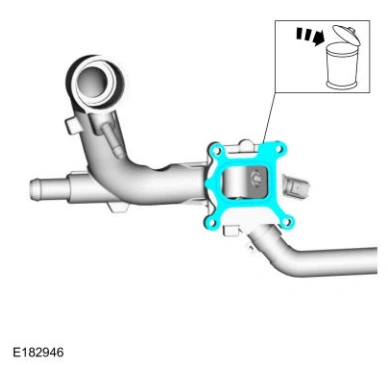

Disassembly — original illustration 2, reference 4855Original colors & callouts · Select to enlarge

3. Remove the bolt and the ground wire.

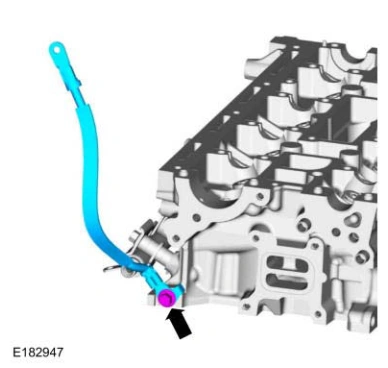

Disassembly — original illustration 3, reference 4855Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4855
