NOTE: Be very careful when removing the lower Teflon® seals, not to scratch, nick or gouge the fuel injectors.
9.

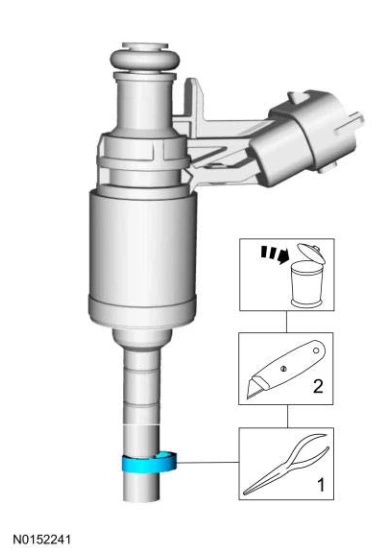

1. Pull the lower Teflon® seal away from the injector.
Use the General Equipment: Long Nose Pliers
2. Carefully cut and discard the lower fuel injector Teflon® seals.
Use the General Equipment: Knife
10. Remove and discard the fuel injector seal and O-ring seal.
