Disassembly — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4859

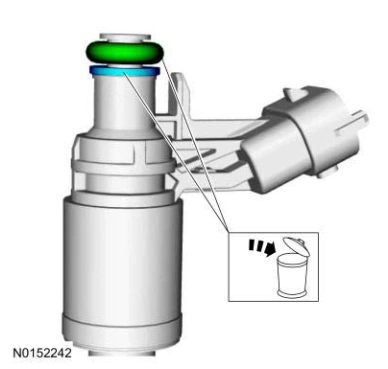

Disassembly — original illustration 1, reference 4859Original colors & callouts · Select to enlarge

NOTE: Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.

11. Remove the spark plugs.

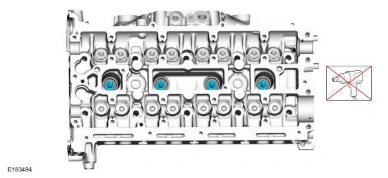

Disassembly — original illustration 2, reference 4859Original colors & callouts · Select to enlarge

NOTE: Use a small screwdriver and multi-purpose grease to remove the valve collets.

12. Using the special tools, remove the valve collet, valve spring retainer and the valve spring.

Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor, 303-350 (T89P-6565-A) Compressor, Valve Spring, 303-472 (T94P-6565-AH) Adapter, Valve Spring Compressor, 303-1249 Valve Spring Compressor.

Material

: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)
