Remove the intake and exhaust valves.

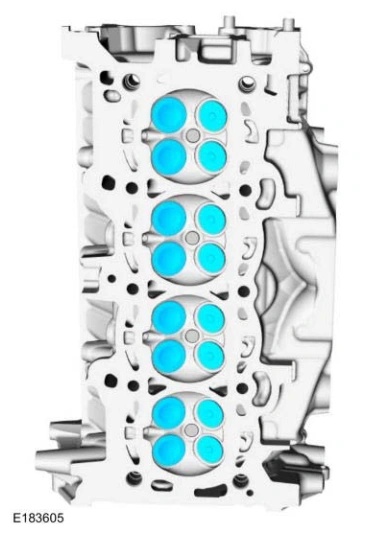

Disassembly — original illustration 1, reference 4861Original colors & callouts · Select to enlarge

16. Inspect the intake and exhaust valves seats.

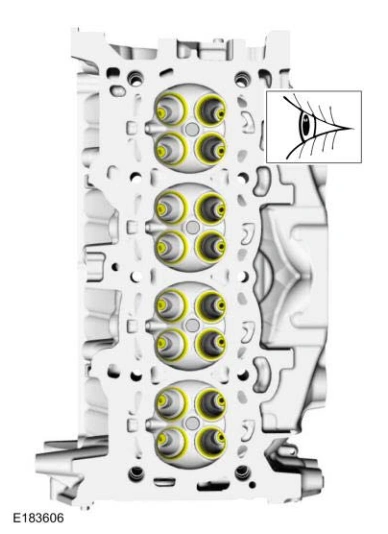

Disassembly — original illustration 2, reference 4861Original colors & callouts · Select to enlarge

NOTE: Install new parts, as necessary.

17.

Ford_Mustang_all_2015-2017.pdf · source reference 4861
