Assembly — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4863

(WSS-M2C946-A)

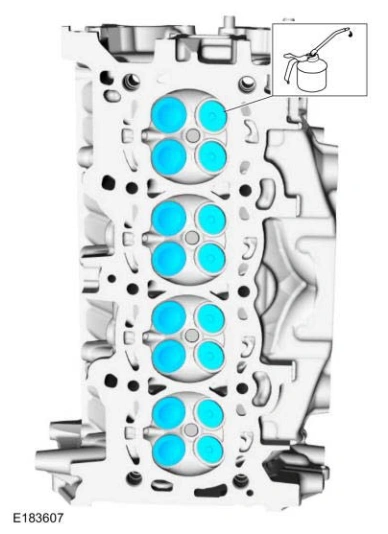

Assembly — original illustration 1, reference 4863Original colors & callouts · Select to enlarge

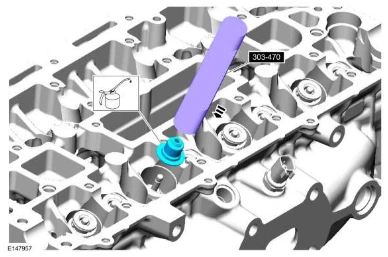

2. Using the special tool, install the valve seals.

Use Special Service Tool: 303-470 (T94P-6510-CH) Installer, Valve Stem Oil Seal.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

Assembly — original illustration 2, reference 4863Original colors & callouts · Select to enlarge

NOTE: Use a small screwdriver and multi-purpose grease to install the valve collets. Check the seating of the valve collet.

3. Using the special tools, install the valve spring, valve spring retainer and the valve collet.

Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor, 303-350
