Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,865HTML edition
← Chapter contentsManual collection

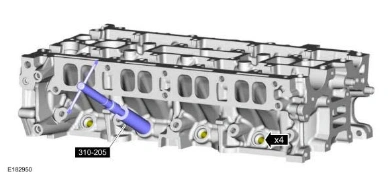

Assembly — original illustration 1, reference 4865Original colors & callouts · Select to enlarge

NOTE: Do not lubricate the new lower Teflon® fuel injector seals.

6.

1. Install the special tool. Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.

NOTE: Once the Teflon® seal is installed on the Teflon® Seal Guide, it should immediately be installed onto the fuel injector to avoid excessive expansion of the Teflon® seal.

2. Make sure that new lower fuel injector Teflon® seals are installed.

Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.

3. Using the Pusher Tool, slide the Teflon® seals off of the Teflon® Seal Guide and into the groove on the fuel injectors.

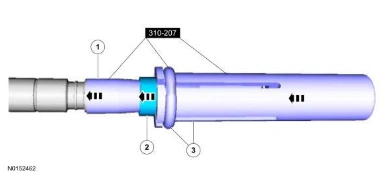

Assembly — original illustration 2, reference 4865Original colors & callouts · Select to enlarge

NOTE: Install the fuel injectors into the cylinder head within 15 minutes of sizing the seals due to Teflon® seal expansion.

NOTE: Make sure the Teflon® seal is fully seated in the groove on the fuel injector before sizing the Teflon® seal.

7.
