Install the fuel injector clip.

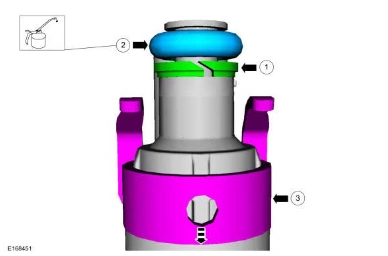

Assembly — original illustration 1, reference 4867Original colors & callouts · Select to enlarge

NOTE: The FRP sensor must be replaced if it is removed from the fuel rail.

NOTE: The anti-rotation finger of the fuel injector clip must slip into the groove of the fuel rail cup.

9. Install the fuel injectors in the fuel rail.

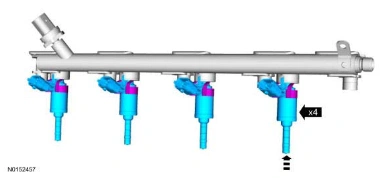

Assembly — original illustration 2, reference 4867Original colors & callouts · Select to enlarge

NOTE: Do not lubricate the new lower Teflon® fuel injector seals.

NOTE: Make sure that new fuel rail bolts are installed.

10. Install the fuel rail by pushing down on the fuel rail above the injectors and install the bolts.

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 26°
