Piston — Disassembly

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,870HTML edition
← Chapter contentsManual collection

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES > PISTON > DISASSEMBLY

NOTE: If the piston and connecting rod are to be reinstalled, they must be assembled in the same orientation. Mark the piston orientation to the connecting rod reassembly.

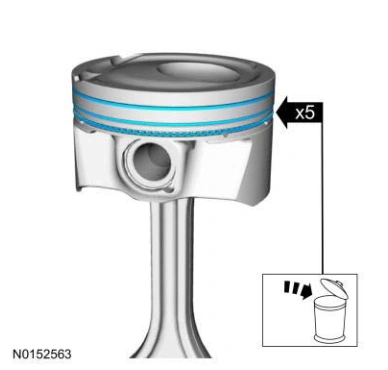

1. Remove the piston rings and discard.

Piston — original illustration 1, reference 4870Original colors & callouts · Select to enlarge

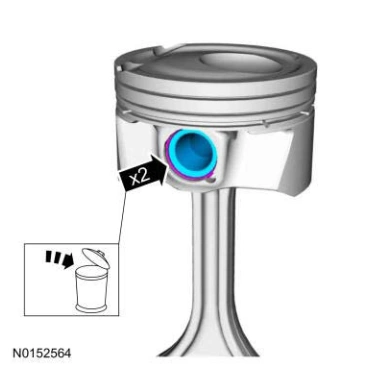

2. Remove the piston pin retainers and discard.

Remove the piston pin.

Piston — original illustration 2, reference 4870Original colors & callouts · Select to enlarge

NOTE: If the piston and connecting rod are to be reinstalled, they must be
