Piston — Assembly

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,872HTML edition
← Chapter contentsManual collection

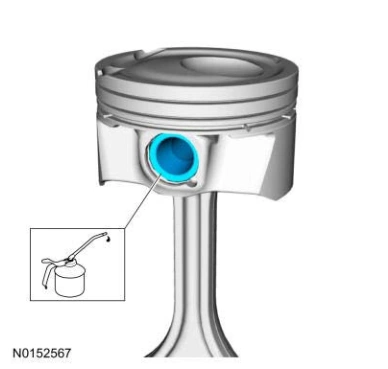

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

Piston — original illustration 1, reference 4872Original colors & callouts · Select to enlarge

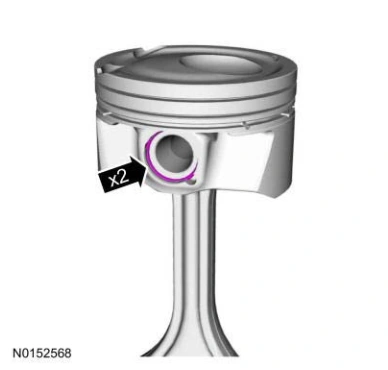

3. Install the piston pin retainers.

Piston — original illustration 2, reference 4872Original colors & callouts · Select to enlarge

4. Lubricate with clean engine oil and install the piston rings.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)
