Piston — Assembly — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4871

assembled in the same orientation. Mark the piston orientation to the connecting rod for reassembly.

3. Remove the piston from the connecting rod. Refer to: Piston Inspection .

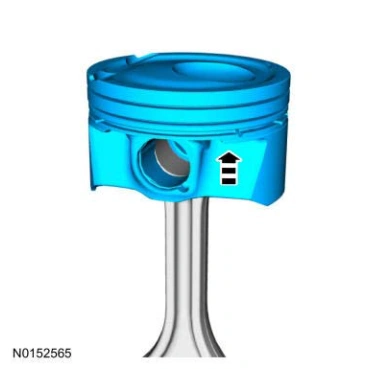

Piston — original illustration 1, reference 4871Original colors & callouts · Select to enlarge

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES > PISTON > ASSEMBLY

NOTE: Align the piston-to-connecting rod orientation marks made during disassembly.

1. Install the piston to the connecting rod.

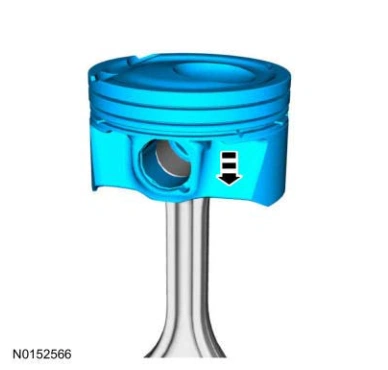

Piston — original illustration 2, reference 4871Original colors & callouts · Select to enlarge

2. Lubricate with clean engine oil and install the piston pin.
