Piston — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4869

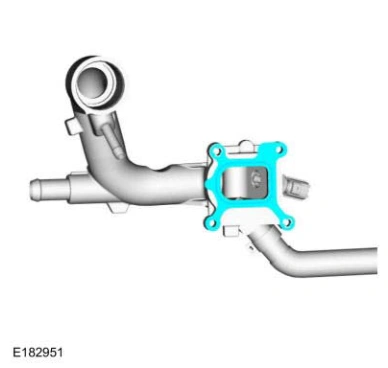

13. Install a new coolant outlet gasket.

Piston — original illustration 1, reference 4869Original colors & callouts · Select to enlarge

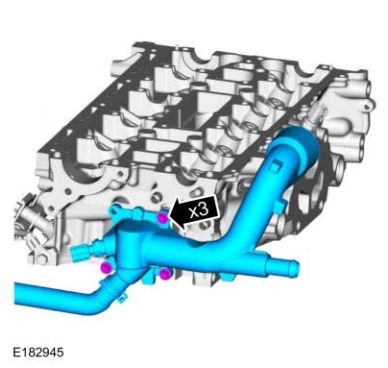

14. Install the coolant outlet and the bolts.

Torque

: 89 lb.in (10 Nm)

Piston — original illustration 2, reference 4869Original colors & callouts · Select to enlarge

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES > PISTON

Materials

Name	Specification
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) XO-5W30-QSP (U.S.)	WSS-M2C946-A
