Assembly — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4868

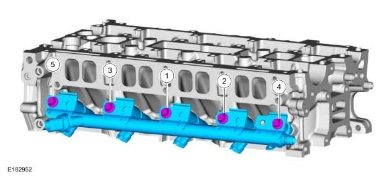

Assembly — original illustration 1, reference 4868Original colors & callouts · Select to enlarge

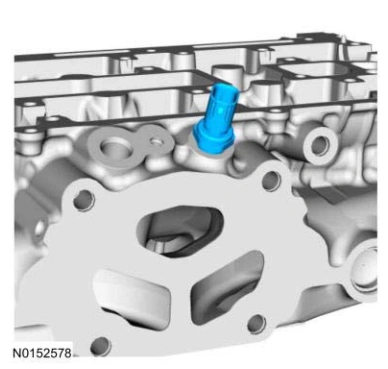

11. Install a new CHT sensor.

Torque

: 97 lb.in (11 Nm)

Assembly — original illustration 2, reference 4868Original colors & callouts · Select to enlarge

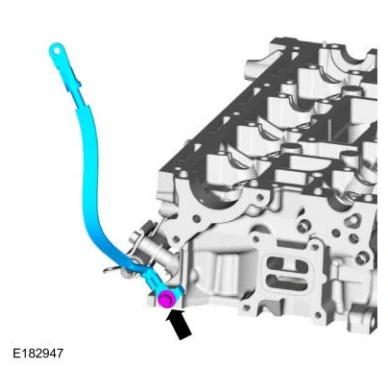

12. Install the ground wire and the bolt.

Torque

: 18 lb.ft (25 Nm)

Assembly — original illustration 3, reference 4868Original colors & callouts · Select to enlarge
