Piston — Assembly

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,873HTML edition
← Chapter contentsManual collection

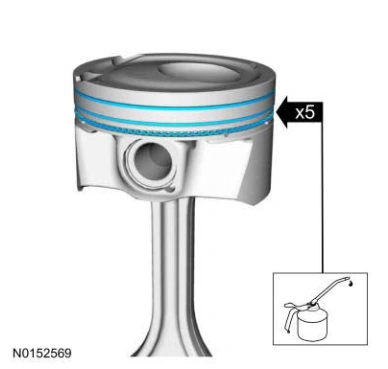

Piston — original illustration 1, reference 4873Original colors & callouts · Select to enlarge

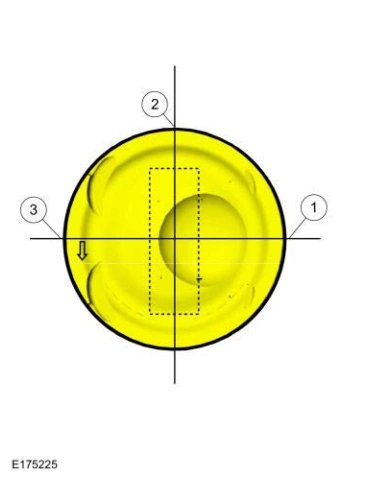

NOTE: Align the piston rings on the piston.

5.

1. Upper oil control segment ring gap location.

2. Oil control spacer gap location.

3. Lower oil control segment ring gap location.

Piston — original illustration 2, reference 4873Original colors & callouts · Select to enlarge
