Materials
Name | Specification |
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) XO-5W30-QSP (U.S.) | WSS-M2C946-A |
Motorcraft® Metal Surface Prep ZC-31-B | - |
Silicone Gasket and Sealant TA-30 | WSE-M4G323-A4 |
Gasket Maker TA-16 | WSK-M2G348-A5 |
Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) VC-3-B (U.S.) | WSS-M97B44-D |
Silicone Brake Caliper Grease and Dielectric Compound XG-3-A | ESE-M1C171-A |
NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

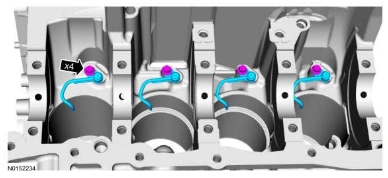

1. Install the engine piston oil cooler valves and the bolts.
Torque
: 89 lb.in (10 Nm)
2.
