Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,878HTML edition
← Chapter contentsManual collection

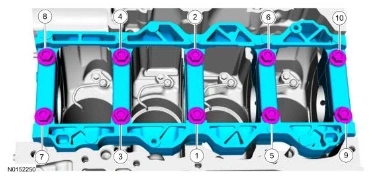

Engine — original illustration 1, reference 4878Original colors & callouts · Select to enlarge

5. Measure each crankshaft block main bearing bore diameter.

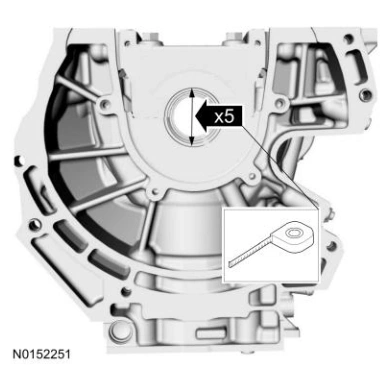

Engine — original illustration 2, reference 4878Original colors & callouts · Select to enlarge

6. Using the chart in illustration below, select the crankshaft main bearings.

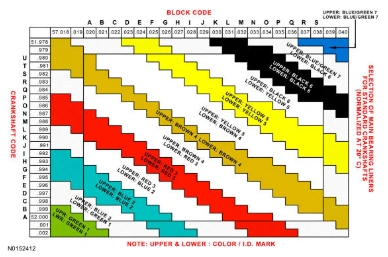

Engine — original illustration 3, reference 4878Original colors & callouts · Select to enlarge

7. Using the original bolts, install the connecting rod caps.

Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: Loosen: 1 turn(s)

Stage 3: 21 lb.ft (29 Nm)
