Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4881

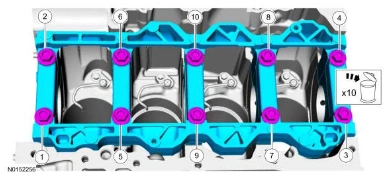

Engine — original illustration 1, reference 4881Original colors & callouts · Select to enlarge

NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.

NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.

13. Lubricate with clean engine oil and install the crankshaft main bearings.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

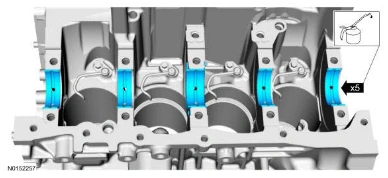

Engine — original illustration 2, reference 4881Original colors & callouts · Select to enlarge

NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.

14. Lubricate with clean engine oil and install the main bearing beam bearings.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)
