Torque:

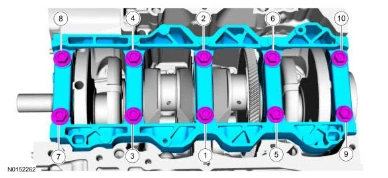

Stage 1: 44 lb.in (5 Nm)
Stage 2: 18 lb.ft (25 Nm)
Stage 3: 90°
19.
1. Position the crankshaft to the rear of the cylinder block.
2. Zero the Dial Indicator Gauge with Holding Fixture.
Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.
3. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
4. Acceptable crankshaft end play is 0.220-0.450 mm (0.0087-0.0177 in). If the crankshaft end play exceeds the specified range, install new parts as necessary.
