Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,883HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4883Original colors & callouts · Select to enlarge

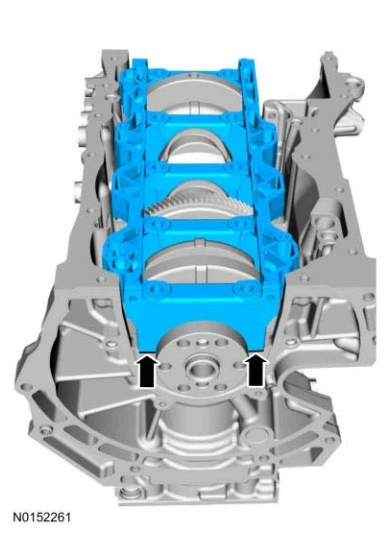

17. Install the main bearing beam flush.

Engine — original illustration 2, reference 4883Original colors & callouts · Select to enlarge

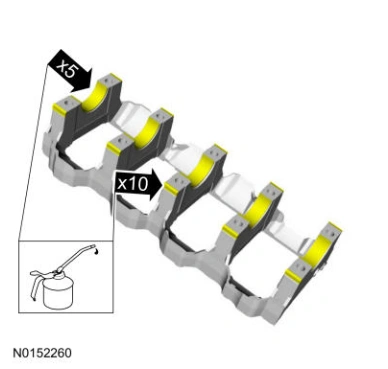

NOTE: Lubricate the new main bearing beam bolts threads and under the bolt heads with clean engine oil.

NOTE: Position the crankshaft to the rear of the cylinder block, then position the crankshaft to the front of the cylinder block before tightening the main bearing beam bolts.

18. Install the bolts and tighten in sequence shown in illustration.

Ford_Mustang_all_2015-2017.pdf · source reference 4883
