Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4880

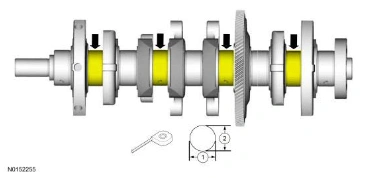

Engine — original illustration 1, reference 4880Original colors & callouts · Select to enlarge

10. Measure the length or distance in two directions.

Record the smallest measurement for each connecting rod journal.

Engine — original illustration 2, reference 4880Original colors & callouts · Select to enlarge

11. Using the chart in illustration below, select the correct connecting rod bearings for each crankshaft connecting rod journal.

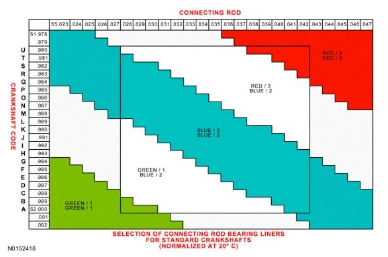

Engine — original illustration 3, reference 4880Original colors & callouts · Select to enlarge

12. Remove the bolts in sequence shown in illustration.

Remove the main bearing beam.

Discard the bolts.

Ford_Mustang_all_2015-2017.pdf · source reference 4880
