Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4877

Measure the length or distance in two directions.

Record the smallest measurement for each crankshaft main bearing journal.

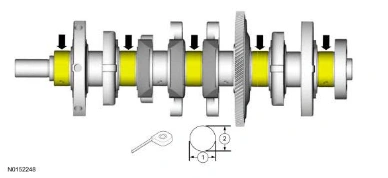

Engine — original illustration 1, reference 4877Original colors & callouts · Select to enlarge

3. Using the original bolts, mount the main bearing beam flush and install the bolts finger tight.

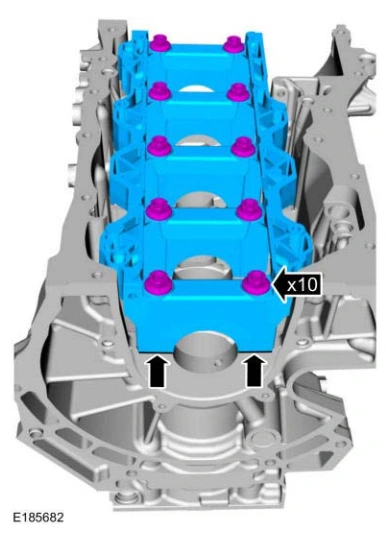

Engine — original illustration 2, reference 4877Original colors & callouts · Select to enlarge

4. Tighten the bolts in sequence shown in illustration.

Torque:

Stage 1: 44 lb.in (5 Nm)

Stage 2: 18 lb.ft (25 Nm)

Stage 3: 90°
