Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4879

Stage 4: 90°

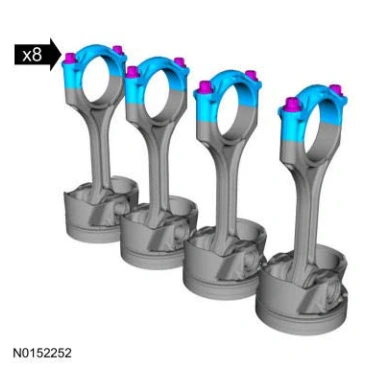

Engine — original illustration 1, reference 4879Original colors & callouts · Select to enlarge

8. Measure the length or distance in two directions.

Record the smallest measurement for each connecting rod.

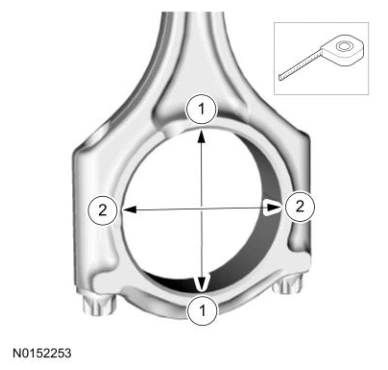

Engine — original illustration 2, reference 4879Original colors & callouts · Select to enlarge

9. Remove the bolts and the connecting rod caps.

Discard the bolts.
