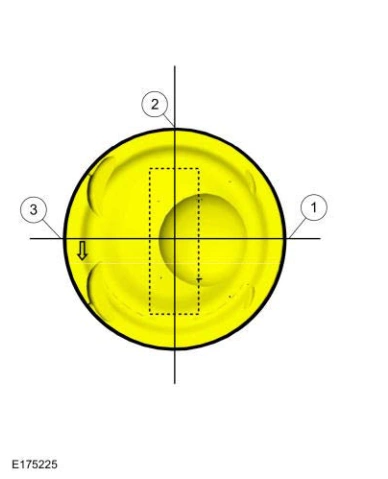

3. Lower oil control segment ring gap location.
22. Lubricate the pistons with clean engine oil.
Material
: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)
NOTE: Make sure the piston arrow on top is facing toward the front of the engine.
NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal.
Using a piston ring compressor, install the pistons.
Use the General Equipment: Piston Ring Compressor
