Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4888

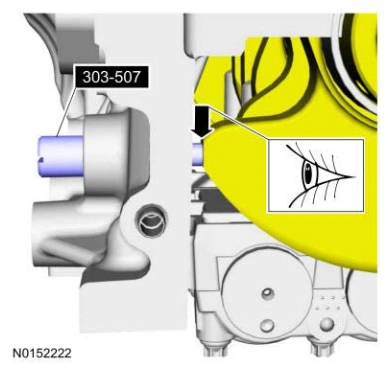

Engine — original illustration 1, reference 4888Original colors & callouts · Select to enlarge

NOTE: Due to the precision interior construction of the balancer unit, it should not be disassembled.

NOTE: The original adjustment shims must be installed in their original positions.

NOTE: Confirm by visual inspection that there is no damage to the balancer unit gear and verify that the shaft turns smoothly. If there is any damage or malfunction, replace the balancer unit.

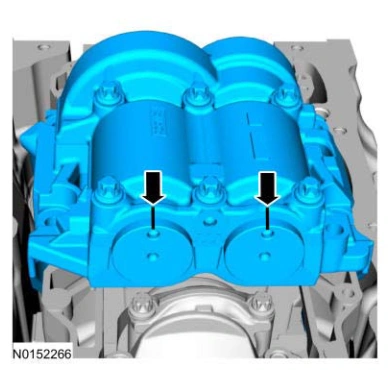

25. Install the adjustment shims in their original positions on the seat faces of the balancer unit. With the balancer unit shaft marks in the TDC position, slowly install the balancer unit to the cylinder block to avoid interference between the crankshaft drive gear and the balancer unit driven gear.

Engine — original illustration 2, reference 4888Original colors & callouts · Select to enlarge

26. Install the bolts and tighten in 2 stages.
