Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4887

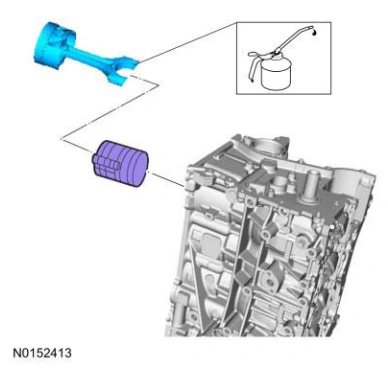

Engine — original illustration 1, reference 4887Original colors & callouts · Select to enlarge

NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.

NOTE: After installation of each connecting rod cap, rotate the crankshaft to verify smooth operation.

23. Install the connecting rod caps, bolts and tighten in 3 stages.

Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: Loosen:: 1 turn(s)

Stage 3: 21 lb.ft (29 Nm)

Stage 4: 90°

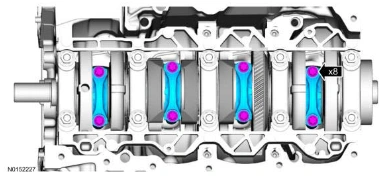

Engine — original illustration 2, reference 4887Original colors & callouts · Select to enlarge

24. Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the special tool. The engine is now at TDC.
