Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4889

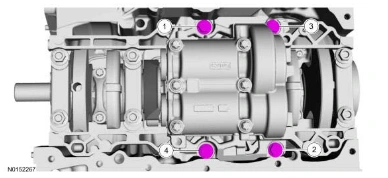

Torque:

Stage 1: 18 lb.ft (25 Nm)

Stage 2: 31 lb.ft (42 Nm)

Engine — original illustration 1, reference 4889Original colors & callouts · Select to enlarge

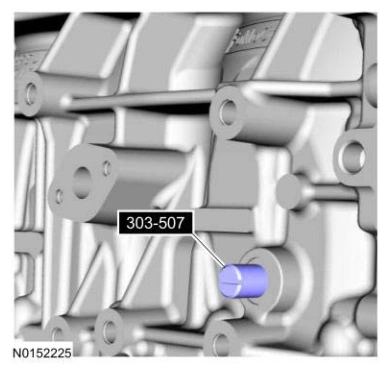

27. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Rotate the crankshaft to confirm that there are no meshing problems between the balancer unit gear and the crankshaft gear.

Engine — original illustration 2, reference 4889Original colors & callouts · Select to enlarge

28.

1. Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

2. Rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the special tool. The engine is now at TDC.

3. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
