Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4892

31. Install the new oil pump gasket.

Engine — original illustration 1, reference 4892Original colors & callouts · Select to enlarge

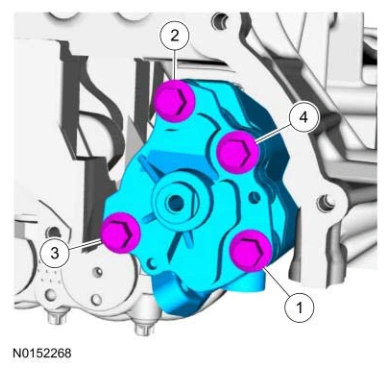

32. Install the oil pump and the bolts and tighten in the sequence shown in illustration in 2 stages.

Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 177 lb.in (20 Nm)

Engine — original illustration 2, reference 4892Original colors & callouts · Select to enlarge

33. Install the oil pump sprocket and bolt.

Torque

: 18 lb.ft (25 Nm)
