Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,894HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4894Original colors & callouts · Select to enlarge

36.

1. Install the timing chain, tensioner and the shoulder bolts.

Torque

: 89 lb.in (10 Nm)

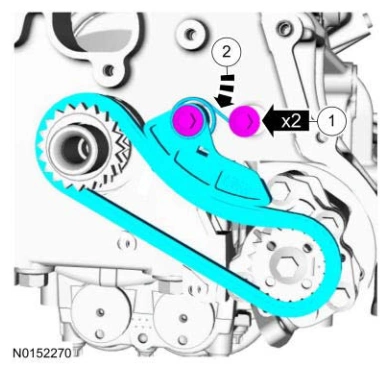

2. Push the tensioner spring down and position the spring under the shoulder bolt.

Engine — original illustration 2, reference 4894Original colors & callouts · Select to enlarge

37. Using the special tool, position the crankshaft rear oil seal onto the crankshaft.

Use Special Service Tool: 303-328 (T88P-6701-B1) Replacer, Rear Seal.

Install the bolts and tighten in sequence shown in illustration.

Ford_Mustang_all_2015-2017.pdf · source reference 4894

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
