Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,896HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4896Original colors & callouts · Select to enlarge

NOTE: If the oil pan is not secured within 10 minutes of silicone sealant application, the silicone sealant must be removed and the sealing area cleaned. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

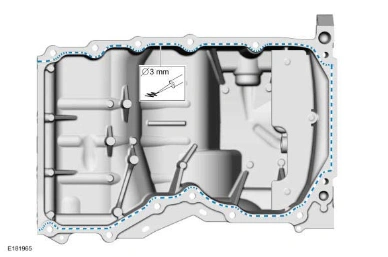

40. Apply a 3 mm bead of silicone sealant.

Material

: Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Engine — original illustration 2, reference 4896Original colors & callouts · Select to enlarge

41. Install the oil pan and the bolts finger tight.

Ford_Mustang_all_2015-2017.pdf · source reference 4896
