Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,898HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4898Original colors & callouts · Select to enlarge

44. Install the cylinder block bushings.

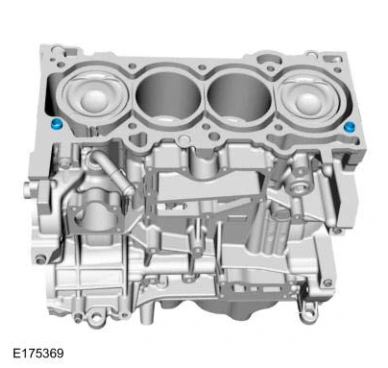

Engine — original illustration 2, reference 4898Original colors & callouts · Select to enlarge

45. Install a new cylinder head gasket.

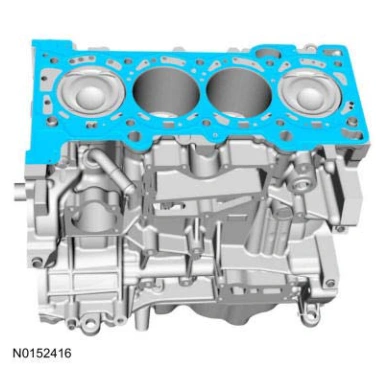

Engine — original illustration 3, reference 4898Original colors & callouts · Select to enlarge

NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.
