Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,895HTML edition
← Chapter contentsManual collection

Torque

: 89 lb.in (10 Nm)

Engine — original illustration 1, reference 4895Original colors & callouts · Select to enlarge

38. Install the new oil pump screen and pickup tube gasket.

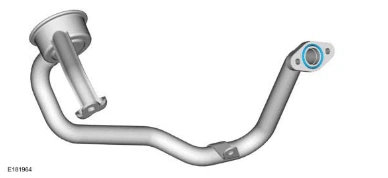

Engine — original illustration 2, reference 4895Original colors & callouts · Select to enlarge

39. Install the oil pickup and screen and the bolts.

Torque

: 89 lb.in (10 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 4895
