Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,893HTML edition
← Chapter contentsManual collection

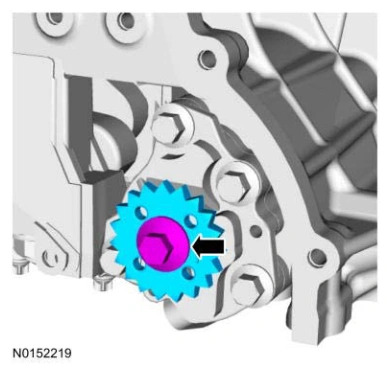

Engine — original illustration 1, reference 4893Original colors & callouts · Select to enlarge

NOTE: Before installation, clean and inspect the diamond washer for any damage. If damaged is evident, replace the diamond washer. If no damage, the diamond washer is to be reused. If the diamond washer is not installed, engine damage may occur.

34. Install the diamond washer.

Engine — original illustration 2, reference 4893Original colors & callouts · Select to enlarge

35. Install the crankshaft sprocket.
