Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4897

Engine — original illustration 1, reference 4897Original colors & callouts · Select to enlarge

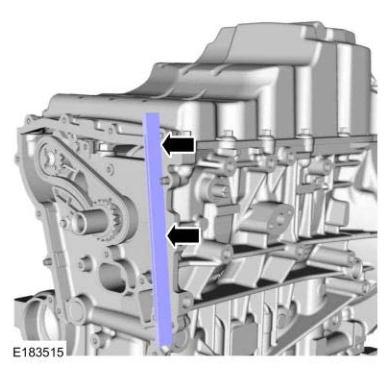

42. Using a straight edge, align the front surface of the oil pan flush with the front surface of the engine block.

Use the General Equipment: Round-Ended Steel Rule

Engine — original illustration 2, reference 4897Original colors & callouts · Select to enlarge

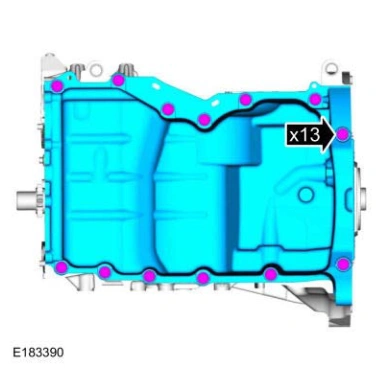

43. Tighten the bolts in sequence shown in illustration.

Torque

: 18 lb.ft (25 Nm)
