Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,885HTML edition
← Chapter contentsManual collection

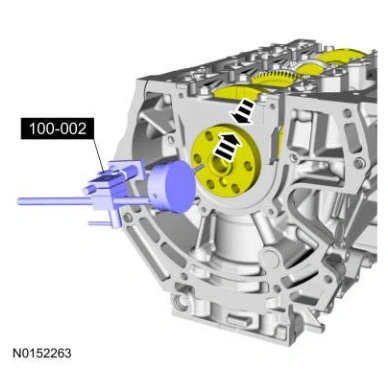

Engine — original illustration 1, reference 4885Original colors & callouts · Select to enlarge

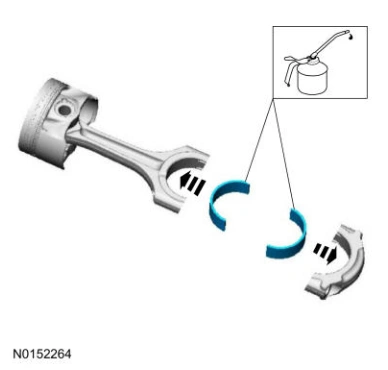

NOTE: If reusing the connecting rod bearings, install them in their original positions and orientation as noted during disassembly.

20. Lubricate with clean engine oil and install the connecting rod bearings.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

Engine — original illustration 2, reference 4885Original colors & callouts · Select to enlarge

NOTE: Align the piston rings on the piston.

21.

1. Upper oil control segment ring gap location.

2.

Ford_Mustang_all_2015-2017.pdf · source reference 4885

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
