Assembly — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4864

(T89P-6565-A) Compressor, Valve Spring, 303-472 (T94P-6565-AH) Adapter, Valve Spring Compressor, 303-1249 Valve Spring Compressor.

Material

: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

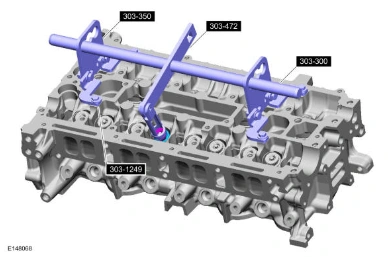

Assembly — original illustration 1, reference 4864Original colors & callouts · Select to enlarge

NOTE: If a spark plug is dropped, internal damage may result and the spark plug must be discarded. The use of a damaged spark plug may cause cylinder misfire resulting in engine damage.

4. Install the spark plugs.

Torque

: 106 lb.in (12 Nm)

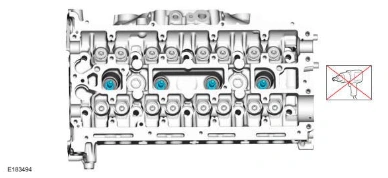

Assembly — original illustration 2, reference 4864Original colors & callouts · Select to enlarge

NOTE: Do not use compressed air or the Fuel Injector Brush to clean the tip of the fuel injectors. Failure to follow this instruction may result in damage to the fuel injectors.

NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.

5. Using the special tool, clean the fuel injector bores. Use Special Service Tool: 310-205 Fuel Injector Brush.
