Disassembly

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,860HTML edition
← Chapter contentsManual collection

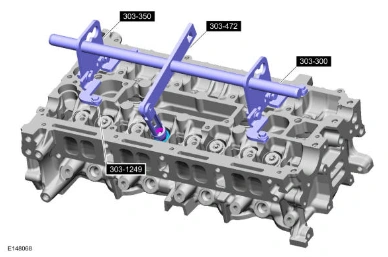

Disassembly — original illustration 1, reference 4860Original colors & callouts · Select to enlarge

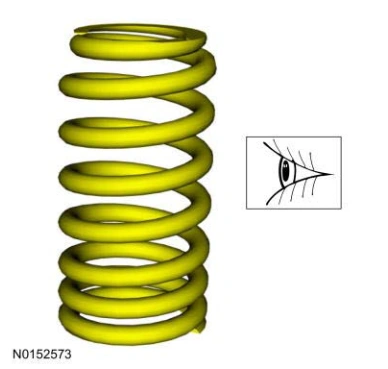

13. Inspect and install new parts, as necessary.

Disassembly — original illustration 2, reference 4860Original colors & callouts · Select to enlarge

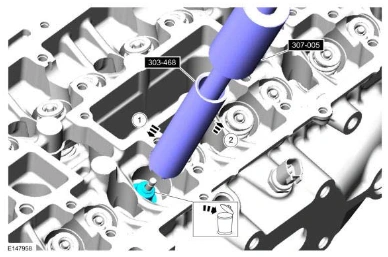

14. Using the special tool, remove the valve seals.

Use Special Service Tool: 303-468 (T94P-6510-AH) Remover, Valve Stem Oil Seal, 307-005 (T59L-100-B) Slide Hammer.

Disassembly — original illustration 3, reference 4860Original colors & callouts · Select to enlarge

NOTE: Note the location of the valves if they are to be reused.

15.
