Disassembly — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4857

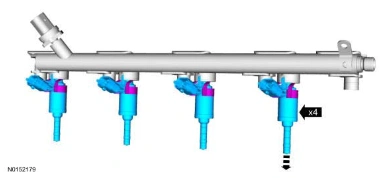

Disassembly — original illustration 1, reference 4857Original colors & callouts · Select to enlarge

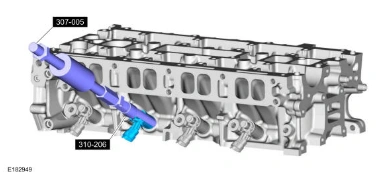

7. Remove any of the fuel injectors that remained in the cylinder head.

Use Special Service Tool: 310-206 Remover, Fuel Injector, 307-005 (T59L-100-B) Slide Hammer.

Disassembly — original illustration 2, reference 4857Original colors & callouts · Select to enlarge

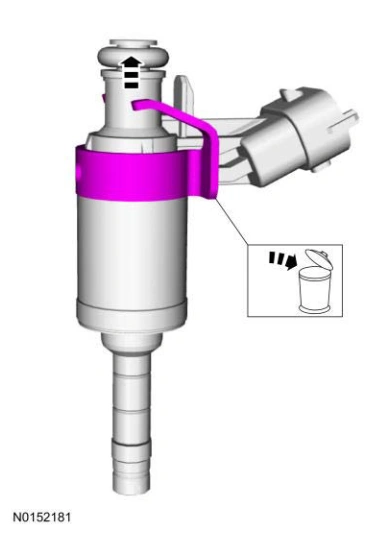

8. Remove the fuel injector clip.

Disassembly — original illustration 3, reference 4857Original colors & callouts · Select to enlarge

NOTE: Do not attempt to cut the lower Teflon® seal without first pulling it away from the fuel injector or damage to the injector may occur.
