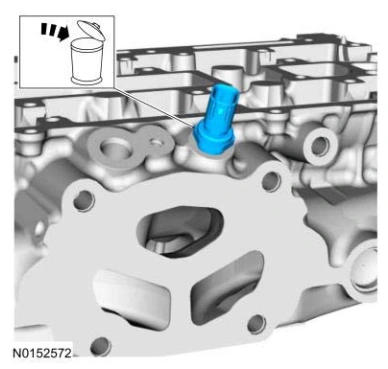

4. Remove and discard the CHT sensor.
NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.
NOTE: Use compressed air and remove any dirt or foreign material from the cylinder head, block and general surrounding area of the fuel rail and injectors.
NOTE: When removing the fuel rails, the fuel injectors may remain in the fuel rails but normally remain in the cylinder head and require the use of a Fuel Injector Remover tool to extract.

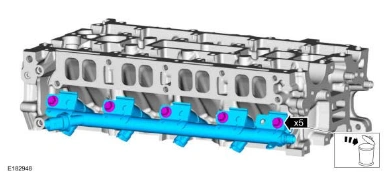

5. Remove the bolts and the fuel rail.
Discard the bolts.
6. Remove any of the fuel injectors that remained in the fuel rail.
